| Mercedes 220 S 1956-58 / 220 S 1958-59 / 220 SE 1958-60 |
| Engine | In-line six-cylinder |
| Weight | Approx. 160 kg |
| Displacement | 2195 cm³ |
| Bore * stroke | 80 * 72,8 mm |
| Crankshaft | Multi-layer bearing, fourfold |
| Cylinder head | Aluminum |
| Compression | 7,6/8,7/8,7 : 1 |
| Engine control | OHC (Duplex-chain) |
| Mixture formation | 2 downdraft carburetor/mech. injection pump |
| Tank capacity | 62 liter |
| Cooling | Oil-coolant heat exchanger |
| Lubrication | Pressure circulation |
| Torque | 162/172/186 Nm at 3500/3500/3800 rpm |
| Max. power | 74/78/85 kW (100/106/115 HP) |
| Rated speed | 4800/5000 rpm |
| Powertrain | Front engine with rear drive |
| Clutch | Single disc, dry
semi automatic (since 1957) |
| Transmission | Four-speed, fully synchronised |
| Cardan shaft | Divided |
| Front suspension | Triangle-transverse arm |
| Rear suspension | Simple joint-swing axle |
| Steering | Ball steering |
| Wheelbase | 2700 mm |
| Brakes | Drums, first cast iron, later on alu-composite casting and brake booster |
| Tyres | 6.70 - 13 |
| Length | 4700 mm |
| Width | 1740 mm |
| Height | 1560 mm |
| Basic weight | Approx. 1450 kg |
| Top speed | Approx. 160/160/165 km/h |
| Manufactured | 1956 - 1960 |
| Electric system | 12 V |
| Sales price | 21.500 - 24.000 DM |

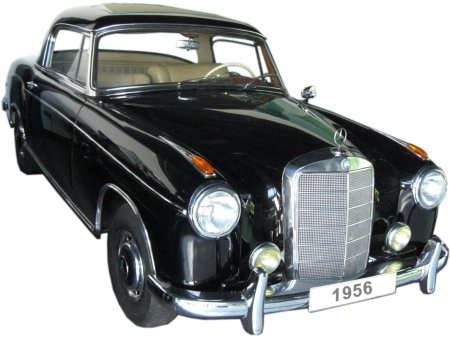

Mercedes 220 Coupe
